Spectra Starfire SG1024MA Print Head

Spectra Starfire SG1024MA print head has 1024 independent channels arranged in 8 rows in a single nozzle plate for single color operation at 400 dpi. Spectra Starfire SG1024MA print head specification Robust and repairable construction 30 picoliter nominal drop size 1024 individually addressable jets Incorporate VersaDrop binary and grayscale jetting Continuous ink recirculation with RediJet Removable/replaceable coated metal nozzle plate Single color operation Print Width: 64.96 mm [2.55 in.] Adj. Range for Droplet Size: 30 to 80 picoliter Tot. Amount of Nozzles: 1024 individually addressable jets Nozzle Spacing: 0.0635 mm [0.0025 in.] Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets. Resolution: Up to 400 dpi Operating Temperature: up to 55°C Ink Compatibility: UV-curable, organic solvents, and aqueous inks Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else. Attention: The print head must be installed by a specialist (engineer).

$3,240.00 $2,590.00

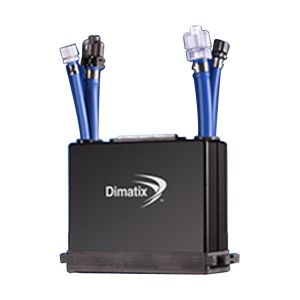

Spectra Starfire SG1024/MA-2C

Spectra Starfire SG1024/MA-2C is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink recirculation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations. Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else. Spectra Starfire SG1024/MA-2C Specifications Robust and repairable construction 30 picoliter nominal drop size 1024 individually addressable jets Incorporate VersaDrop binary and grayscale jetting Continuous ink recirculation with RediJet Removable/replaceable collar mounted, coated metal nozzle plate Two colors operation Print Width: 64.96 mm [2.55 in.] Nominal Drop Size: 30 picoliter Adj. Range for Droplet Size: 30 to 80 picoliter Tot. Amount of Nozzles: 1024 (two separate ink paths each with 512 independent channels) Nozzle Spacing: 0.0635 mm [0.0025 in.] Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets. Resolution: Up to 200 dpi Operating Temperature: up to 55°C Ink Compatibility: UV-curable, organic solvents, and aqueous inks

$3,240.00 $2,590.00

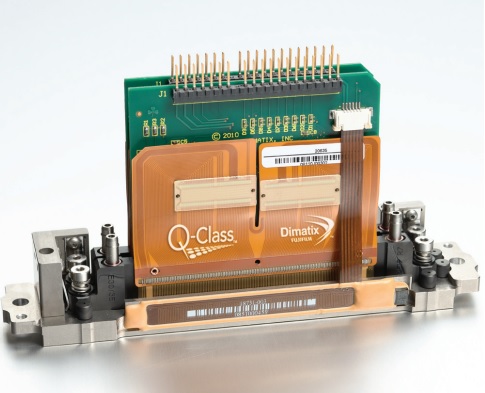

Spectra Polaris PQ-512/85pl AAA Print Head

Spectra Polaris PQ-512/85pl AAA Print Head Features: - 80 picoliter nominal drop size - Resolutions up to 400 dpi - 512 individual addressable nozzles - VersaDrop™ binary jetting capability - Supports UV-curable, solvent, and aqueous-based inks - Configurable for single- and two-color operation - Integral mounting bezel with precision features - Optimized for high viscosity jetting fluids - Built-in heaters and temperature sensors - Operation up to 60°C [140°F] - Simplified field repair with no special tools required Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else. Attention: The print head must be installed by a specialist (engineer). Do not try to install it yourself!

$2,150.00 $1,980.00
Spectra Galaxy JA 256/50pl AAA Print Head

Spectra Galaxy JA 256/50pl AAA high performance printhead that is suitable for a wide range of models of large format printers with printing resolution up to 600 dpi. 256 nozzles are arranged in one line, piezoelectric type. Spectra Galaxy 256 50pl printhead Specifications - Technology: Piezo Electric - Max. Resolution: 600 dpi - Cal. Droplet Size: 50 pico litre - Adj. Range for Droplet Size: 45-55 pico litre - Tot. Amount of Nozzles: 256 - Nozzle Spacing: 254 microns - Nozzle Diameter: 36 microns - Firing Frequency: 20 kHz - Operating Temperature: up to 90°C - Ink Compatibility: Solvent, water-based and UV Inks   Spectra Galaxy 256 50pl is suitable for the following printer models: - Agfa Anapurna XL2 - Dilli Neo Venus UVV-2506 (GW) - Dupont Cromaprint 22UV - Keundo SupraQ 3300-UV, VUTEk PV200 / 600 (only for white ink) / PV320 / 400 - PrismaJet P22 - Teckwin TeckUV S2400 / TeckUV S3000 - Inwear L3508G, Buskro BK1700 Attention: 1. Installation of printheads should be carried out by qualified specialists (engineers). To avoid breakages and problems with the operation of the equipment, do not try to install the print heads yourself. 2. Return and replacement of printed heads is made only in case the received goods have already arrived damaged. Carefully inspect the packaging and its contents upon receipt. In case of visible damage, do not take delivery and contact your manager. 3. Be careful when ordering print heads. Precisely determine which model is right for your equipment. Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else.

$2,280.00 $2,050.00
