New Products


Spectra Starfire SG1024MA Print Head

Spectra Starfire SG1024MA print head has 1024 independent channels arranged in 8 rows in a single nozzle plate for single color operation at 400 dpi. Spectra Starfire SG1024MA print head specification Robust and repairable construction 30 picoliter nominal drop size 1024 individually addressable jets Incorporate VersaDrop binary and grayscale jetting Continuous ink recirculation with RediJet Removable/replaceable coated metal nozzle plate Single color operation Print Width: 64.96 mm [2.55 in.] Adj. Range for Droplet Size: 30 to 80 picoliter Tot. Amount of Nozzles: 1024 individually addressable jets Nozzle Spacing: 0.0635 mm [0.0025 in.] Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets. Resolution: Up to 400 dpi Operating Temperature: up to 55°C Ink Compatibility: UV-curable, organic solvents, and aqueous inks Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else. Attention: The print head must be installed by a specialist (engineer).

Price: $3,240.00 $2,590.00
Spectra Starfire SG1024/MA-2C

Spectra Starfire SG1024/MA-2C is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink recirculation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations. Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else. Spectra Starfire SG1024/MA-2C Specifications Robust and repairable construction 30 picoliter nominal drop size 1024 individually addressable jets Incorporate VersaDrop binary and grayscale jetting Continuous ink recirculation with RediJet Removable/replaceable collar mounted, coated metal nozzle plate Two colors operation Print Width: 64.96 mm [2.55 in.] Nominal Drop Size: 30 picoliter Adj. Range for Droplet Size: 30 to 80 picoliter Tot. Amount of Nozzles: 1024 (two separate ink paths each with 512 independent channels) Nozzle Spacing: 0.0635 mm [0.0025 in.] Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets. Resolution: Up to 200 dpi Operating Temperature: up to 55°C Ink Compatibility: UV-curable, organic solvents, and aqueous inks

Price: $3,240.00 $2,590.00
Spectra Polaris PQ-512/85pl AAA Print Head

Spectra Polaris PQ-512/85pl AAA Print Head Features: - 80 picoliter nominal drop size - Resolutions up to 400 dpi - 512 individual addressable nozzles - VersaDrop™ binary jetting capability - Supports UV-curable, solvent, and aqueous-based inks - Configurable for single- and two-color operation - Integral mounting bezel with precision features - Optimized for high viscosity jetting fluids - Built-in heaters and temperature sensors - Operation up to 60°C [140°F] - Simplified field repair with no special tools required Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else. Attention: The print head must be installed by a specialist (engineer). Do not try to install it yourself!

Price: $2,150.00 $1,980.00
Spectra Galaxy JA 256/50pl AAA Print Head

Spectra Galaxy JA 256/50pl AAA high performance printhead that is suitable for a wide range of models of large format printers with printing resolution up to 600 dpi. 256 nozzles are arranged in one line, piezoelectric type. Spectra Galaxy 256 50pl printhead Specifications - Technology: Piezo Electric - Max. Resolution: 600 dpi - Cal. Droplet Size: 50 pico litre - Adj. Range for Droplet Size: 45-55 pico litre - Tot. Amount of Nozzles: 256 - Nozzle Spacing: 254 microns - Nozzle Diameter: 36 microns - Firing Frequency: 20 kHz - Operating Temperature: up to 90°C - Ink Compatibility: Solvent, water-based and UV Inks   Spectra Galaxy 256 50pl is suitable for the following printer models: - Agfa Anapurna XL2 - Dilli Neo Venus UVV-2506 (GW) - Dupont Cromaprint 22UV - Keundo SupraQ 3300-UV, VUTEk PV200 / 600 (only for white ink) / PV320 / 400 - PrismaJet P22 - Teckwin TeckUV S2400 / TeckUV S3000 - Inwear L3508G, Buskro BK1700 Attention: 1. Installation of printheads should be carried out by qualified specialists (engineers). To avoid breakages and problems with the operation of the equipment, do not try to install the print heads yourself. 2. Return and replacement of printed heads is made only in case the received goods have already arrived damaged. Carefully inspect the packaging and its contents upon receipt. In case of visible damage, do not take delivery and contact your manager. 3. Be careful when ordering print heads. Precisely determine which model is right for your equipment. Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else.

Price: $2,280.00 $2,050.00
Epson DX5 F186000 Print Head Uncoded

Epson DX5 F186000 uncoded print head also known as non encryption DX5 printhead that is compatible with the most Chinese made Epson inkjet printers. Epson DX5 print head F186000 unlocked is new Epson print head for all Chinese inkjet printers, it could replace all those locked or unlocked printheads for Micolor, SJ1845, SJ1645, Infiniti Galaxy: UD161LC, FY-181LA, FY1812LA, FY211LA, FY212LA UD-2512LA etc., Sky-color, Zhongye: E2001, E2502, E3202 etc., Allwin, Human xenons, Myjet Foturne-lit. Also, Epson DX5 print head is suitable for the following printer models: Galaxy, Witcolor, Allwin, Sid Signs, Smart color, Bannerjet, Astarjet, Micolor, Xuli, Gad, Myjet. Inks: solvent, water-based, sublimation The head should not be used with Mimaki or Mutoh printers due to different voltages. Epson DX5 Specifications Technology: Micro-Piezo Native resolution: 1440 dpi Min. droplet size: 1.5 pico litre Max. droplet size: 21 pico litre Tot. amount of nozzles: 1440 (8 lines x 180 nozzles) Firing frequency: 8 kHz Ink compatibility: solvent and eco-solvent based

Price: $1,090.00 $995.00
Konica KM1024i LHE 30pl

Konica KM1024i LHE 30pl printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles of KM1024i LHE 30pl has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. Konica KM1024i LHE 30pl Specifications • Technology: Piezo Drop On-Demand • Native Resolution: 360 dpi • Cal. Droplet Size: 30 pico litre • Max. Drops in Greyscale: 8 drops • Tot. Amount of Nozzles: 1024 (256 nozzles per line) • Print Width: 72 mm • Firing Frequency: 27 kHz • Drive Voltage: 13+-3V • Ink Compatibility: UV (White) • Heater: integrated • Dimensions: W131mm x D17mm x H94mm • Weight: Approx. 150g Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else.

Price: $2,290.00 $2,100.00
Konica KM1024i SHE 6pl

Konica KM1024i SHE 6PL printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. Konica KM1024i SHE 6pl Specifications • Technology: Piezo Drop On-Demand • Native Resolution: 360 dpi • Cal. Droplet Size: 6 pl • Max. Drops in Greyscale: 8 drops • Tot. Amount of Nozzles: 1024 (256 nozzles per line) • Print Width: 72 mm • Typical Firing Frequency: 50 Khz • Max Firing Frequency: 60 kHz • Ink Compatibility: UV Inks • Heater: integrated • Dimensions: W131mm x D18mm x H94mm • Weight: Approx. 150g Konica KM1024i SHE 6pl is compatible with: - Agfa: Anapurna 100, Anapurna H2500i LED, Anapurna M2050i, Anapurna M2500i, Anapurna M3200i - Allwin: S320UV, S500UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512 - Docan: H1000 - Flora: HJ 5000UV - Human Digital Technology: M-JET - IIJ: ColourPrint-72 - JHF Vista: R3300, R6000, V300UV, V500UV - Optimum Digital: KR Hybrid UV - Skyjet: FT2512i, FT3020i Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else.

Price: $2,290.00 $2,100.00
Konica KM1024i MHE-D 13pl Print Head

Konica KM1024i MHE-D 13pl print head is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line structure. Konica KM1024i MHE-D 13pl print head Specifications: • Technology: Piezo Drop On-Demand • Native Resolution: 360 dpi • Cal. Droplet Size: 13 pico litre • Max. Drops in Greyscale: 8 drops • Tot. Amount of Nozzles: 1024 (256 nozzles per line) • Print Width: 72 mm • Firing Frequency: 45 kHz • Ink Compatibility: UV, Oil and Solvent Inks • Heater: integrated • Dimensions: W131mm x D18mm x H94mm • Weight: Approx. 150g Konica KM1024i MHE-D 13pl print head is compatible with Anapurna M2050i, Anapurna M2500i, Anapurna M3200i, Anapurna H2500i LED, IIJ ColourPrint-72, Yueda YD2512-KD, Docan H1000, Taimes T50UV, Flora HJ 5000UV, Optimum Digital KR Hybrid UV, Allwin S320UV, S500UV, E320UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512, Human Digital Technology M-JET, JHF Vista R6000, R3300, V300UV, V500UV, Skyjet FT2512i, FT3020i, Flora PP3200 UV. Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else.

Price: $2,390.00 $2,100.00

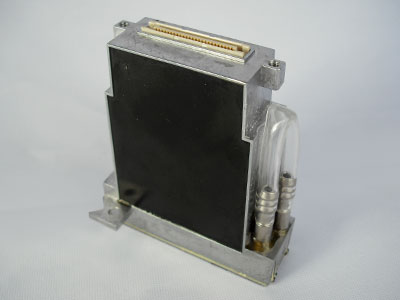

Konica KM512i 30pl Print Head

Konica KM512i 30pl printhead is used for the following printers: Allwin E320, E500, C4-512i, C8-512i, C8-512i Plus, MeiTu MT-KN3208CI, MT-KN3204CI Since 2010 we sell the print heads online worldwide supplying large advertising enterprises and small printing companies. If you found the prices cheaper than ours please contact us with your query at info (at) digitalprintheads.com, we are sure we can provide you better price than anyone else. Konica KM512i 30pl Print Head Specifications - Technology: On-Demand Piezo Electric - Drive System: Indepenent drive system - Native Resolution: 360 dpi - Cal. Droplet Size: 30 pico litre - Tot. Amount of Nozzles: 512 (256 nozzles per line) - Print Width: 72.2 mm - Firing Frequency: 30,4 kHz - Ink Compatibility: Solvent - Heater: not integrated Attention: Installation of Konica KM512i 30pl print heads should be carried out by qualified specialists (engineers). To avoid breakages and problems with the operation of the equipment, do not try to install the print heads yourself.

Price: $1,590.00 $1,190.00

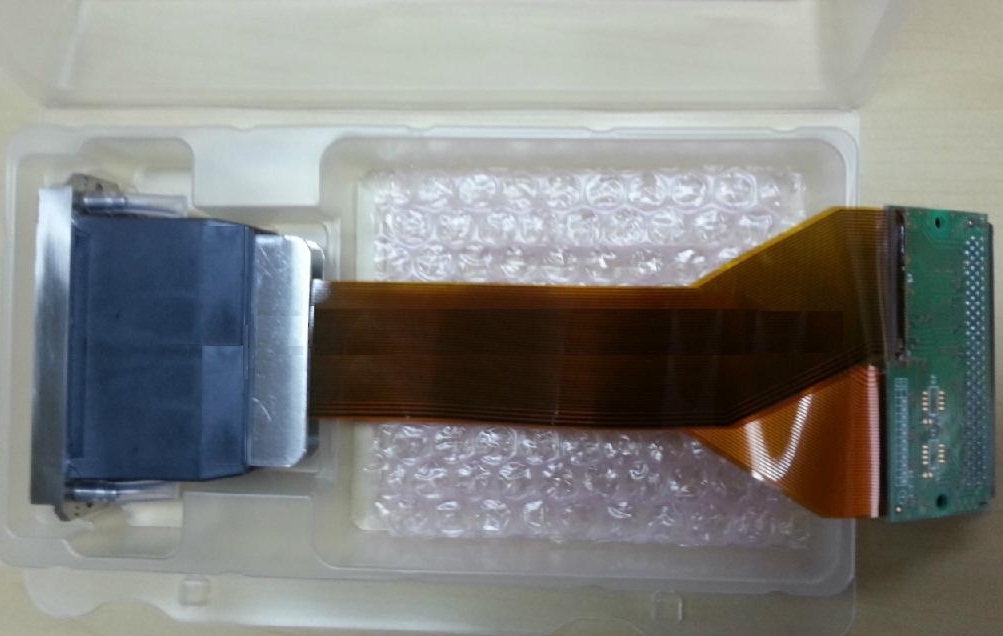

Ricoh Gen5 Print Head

Ricoh Gen5 print head is available for water ink & UV with 248mm and 500mm cables. Please contact us by email to specify the head type and cable length. Ricoh Gen5 print head Design Features - 1280 channels - Two color and four color support - Single color: 600npi - Two color: 300npi - Four color: 150npi - 8 level grey scale capability Ricoh Gen5 print head Specification Size: 89 x 25 x 69 mm excluding cable and connectors Head materials: SST, Nickel alloy and epoxy adhesive, direct contact with ink Compatible jetting fluids: Compatible with water, solvent, oil, UV curable inks Nozzle plate surface: Coated SST Number of nozzles: 4 x 320 channels Nozzle spacing: A: Within a single row: 0.1693 mm (1/150") B: Within a color: 0.0847 mm (1/300") C: Single Pass: 0.0423 mm (1/600") D: Row to row distance: 0.55 mm E: Color to color: 11.811 mm Inkjet inlet port: 2 x dual ports Piezo type: D33 staked PZT Drop ejection mode: Piston pusher with metallic diaphragm plate Integrated electronics: Low voltage serial to high voltage parallel converter; 3-bit shift resistors; transmission gate outputs Temperature control: Integrated heater and thermistor Viscosity: 11 cP at operating temperature Surface tension: 32 dynes/cm Native drop volume: 7 picoliter Drop volume range/variation: 7-35 picoliter with grey scale +- 10% Drop velocity nominal/variation: 7 m/sec/ +-15% Crosstalk: 10% or less with all channels firing Jet straightness 1 sigma: < 3.5 milliradian from nozzle radian Native drop operation frequency: 60kHz Higher burst possible under ideal condition Life: 100 billion actuation's per nozzle Also called Mimaki ricoh gen5 printhead price. Used on latest Mimaki SWJ-320 etc. Attention: Installation of printheads should be carried out by qualified specialists (engineers). To avoid breakages and problems with the operation of the equipment, do not try to install the print heads yourself.

Price: $2,490.00 $2,185.00
